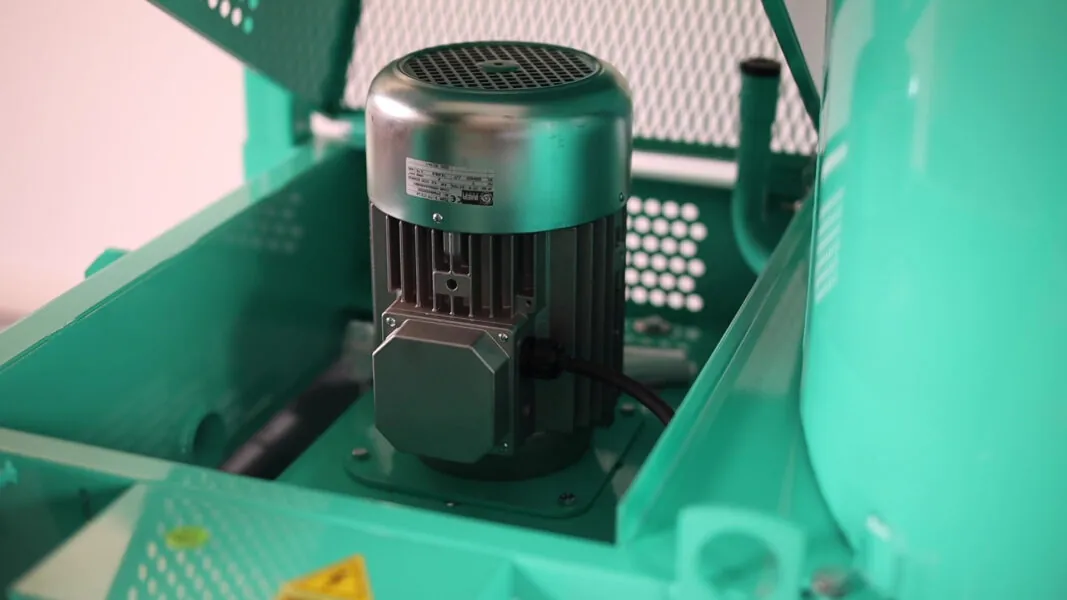

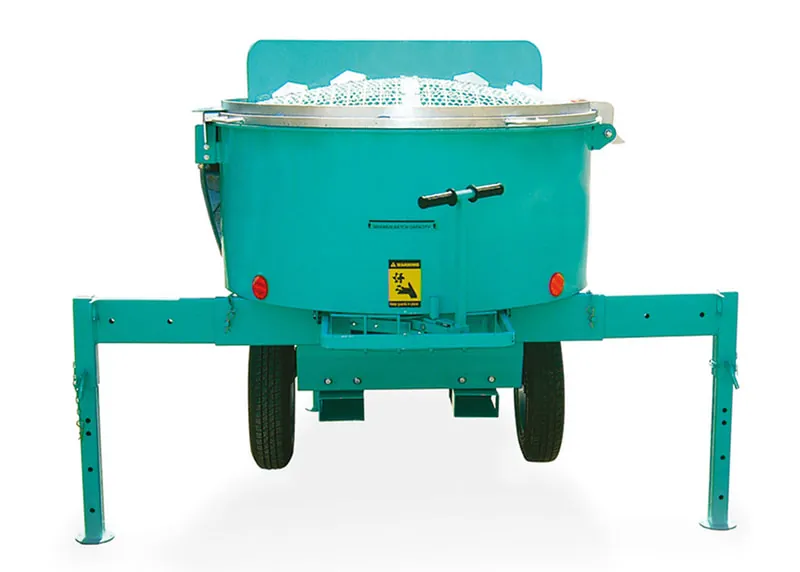

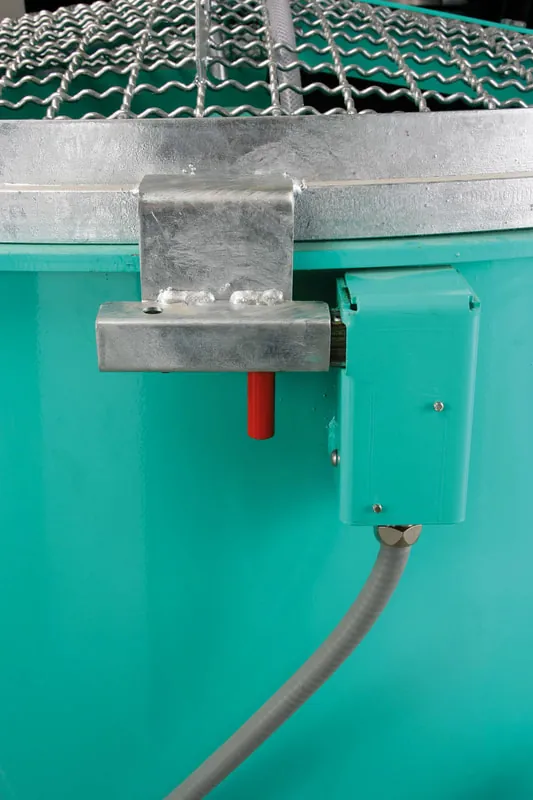

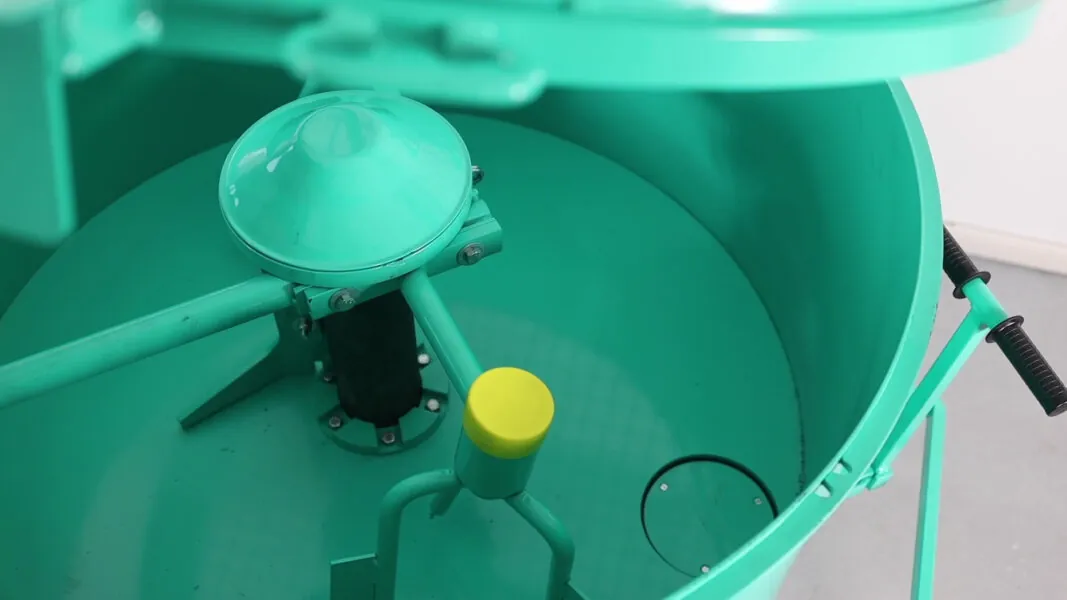

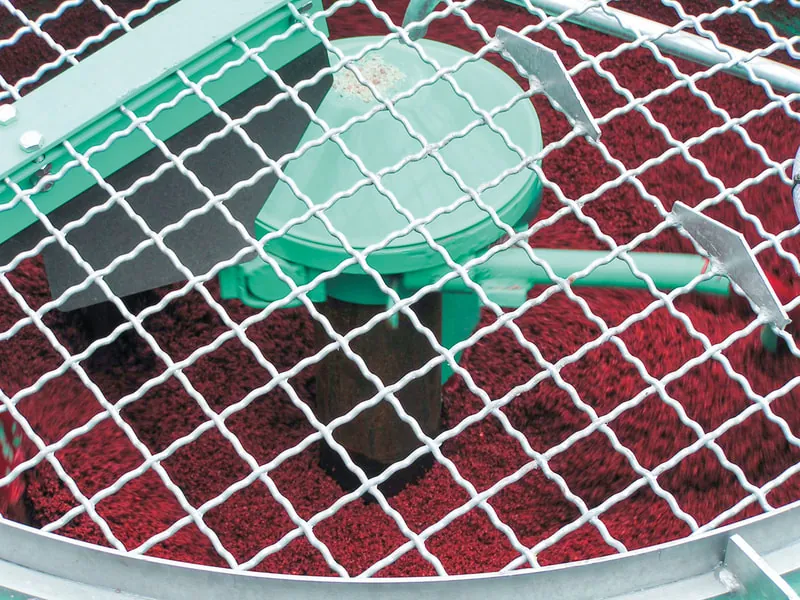

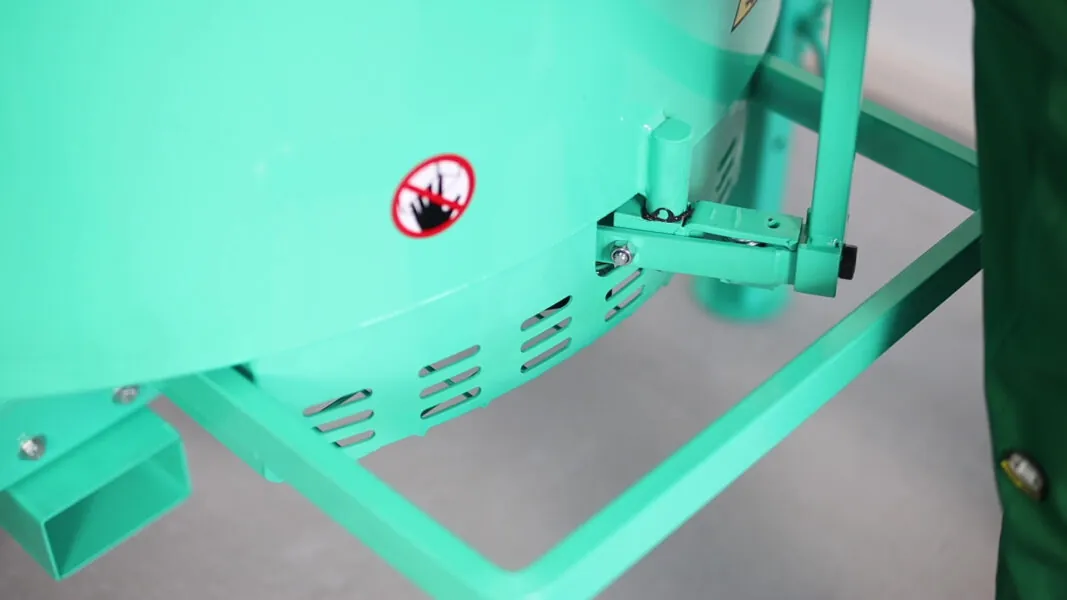

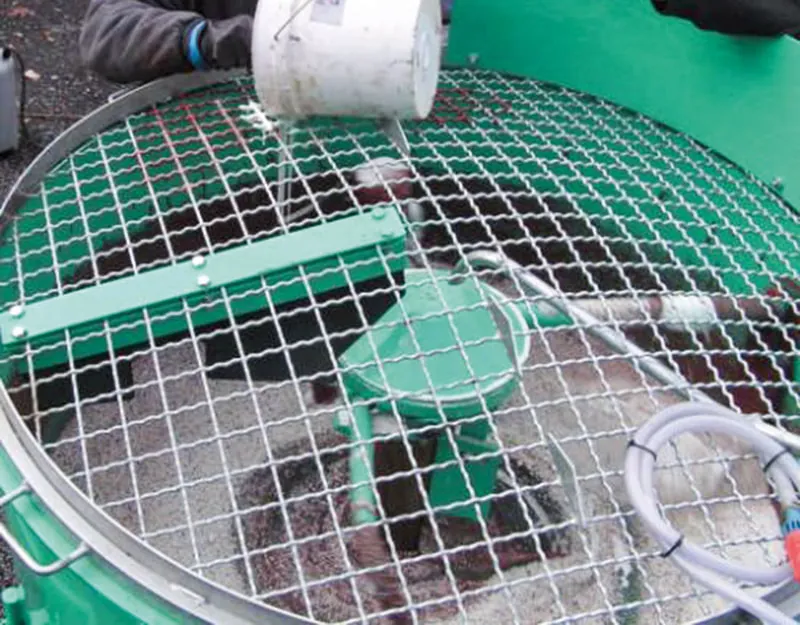

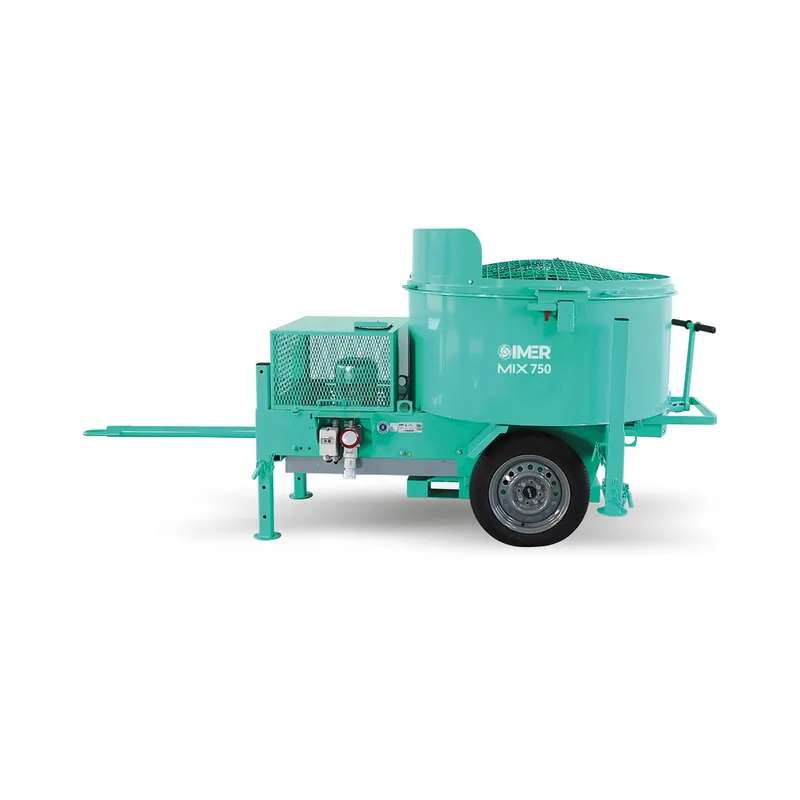

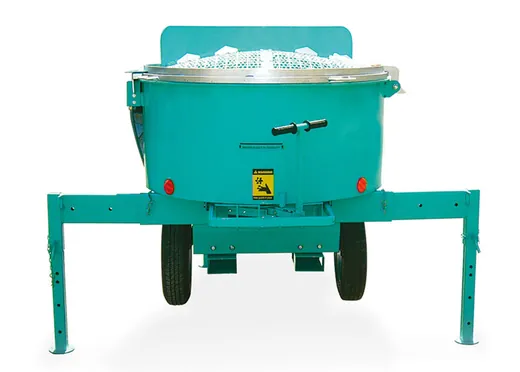

Mix 750 Vertical Shaft Mixer - Side View Mix 750 Vertical Shaft Mixer - Front View Mix 750 Vertical Shaft Mixer - Inside Mixer Mix 750 Vertical Shaft Mixer - Dispatch Handle Mix 750 Vertical Shaft Mixer - Electric Motor Mix 750 Vertical Shaft Mixer - Safety Grate Latch Mix 750 Vertical Shaft Mixer - Mixing red dyed material Mix 750 Vertical Shaft Mixer - Mixing

IMER · Vertical Shaft Mixers

Mix 750

The Mix 750 is the perfect partner for busy precast mixing operations. The discharge system is easy to open and close and protected from being hit by a mud bucket or forklift. The safety grate is hinged, making access immediate.

Buy

Freight and sales tax are worked out for your ship-to address.

Technical specifications

Model #1194644
Model # - 208V Three Phase 7.5 HP1194645
Model # - 480V Three Phase 7.5 HP1194646
Model # - 13 HP Honda GXV 3901194648
Model # - No Motor1194640
Drum Capacity22 cu ft
Batch Output18 cu ft
Drum Diameter52 in
Max. Aggregate Size3/8 in
Discharge Height - Max / Min29 in / 23 in
Wheels22 in
Weight1,588 lbs
Width63 in
Length90 in
Height62 in

Manuals & sheets

Questions about the Mix 750?

Specifications from the manufacturer. Mix 750 at IMER USA

Overview

The Mix 750 is the perfect partner for busy precast mixing operations, and on bridge and highway jobs. The discharge system is easy to open and close and protected from being hit by a mud bucket or forklift. The safety grate is hinged, making access immediate. The Mix 750 is Mini-Batch Plant production for a fraction of the cost. These mixers develop vast amounts of mixing power, far more than any horizontal shaft mortar mixer. The ability to mix refractory mud or stiff, dry materials is unparalleled in the industry.

Standard equipment

  • Auto-Shutdown Safety Grate
  • Adjustable Leg Heights
  • Tow Bar
  • Torsion Bar Suspension
