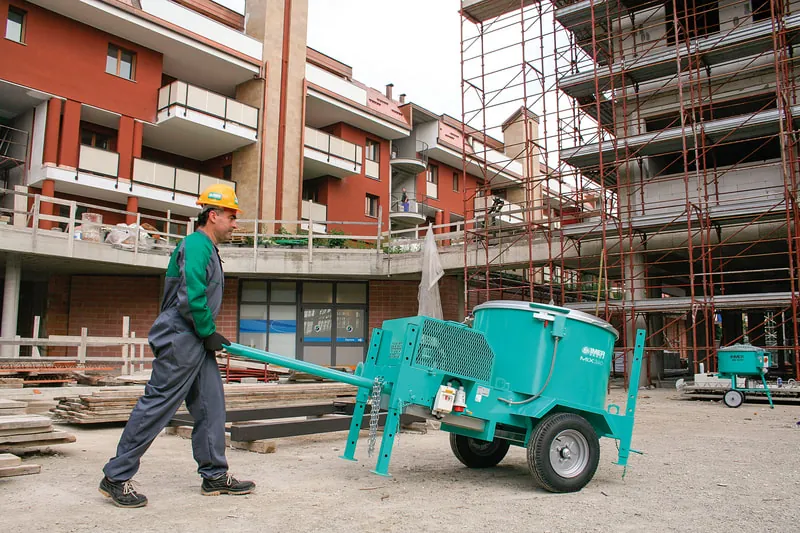

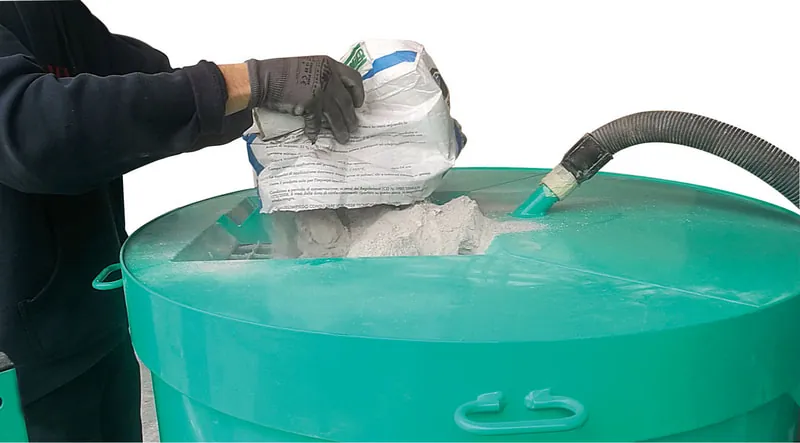

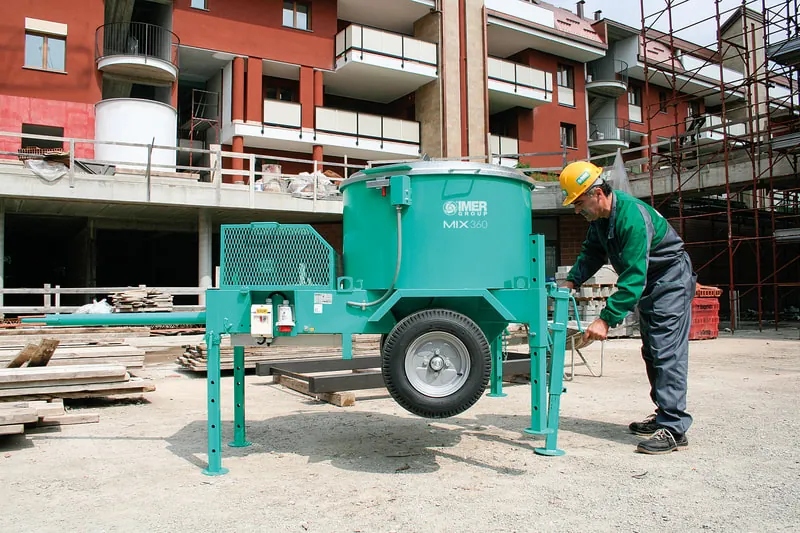

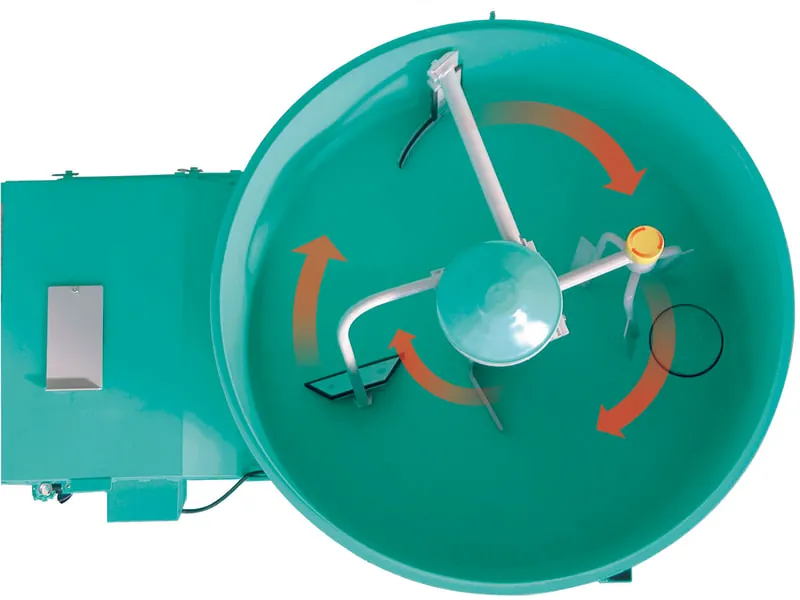

Mix 360 Vertical Shaft Mixer Mix 360 Vertical Shaft Mixer: Rotation Mix 360 Vertical Shaft Mixer: Breaking Bag Mix 360 Vertical Shaft Mixer: Placement Mix 360 Vertical Shaft Mixer: Discharge

IMER · Vertical Shaft Mixers

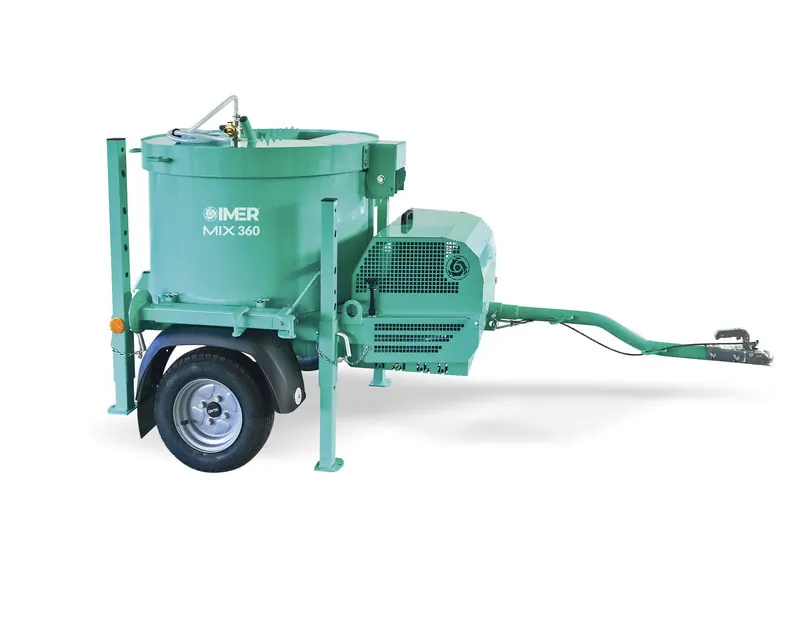

Mix 360

Mix 360 Plus towable vertical shaft mixer — handles UHPC, refractory cement & low slump mixes. Trusted since 1962.

Buy

Freight and sales tax are worked out for your ship-to address.

Technical specifications

Model #1194662
Model # - Gas1194661
Drum Capacity12 cu ft
Batch Output9 cu ft
Maximum Aggregate Size3/8 in
Discharge Height - Max / Min30 / 18 in
Wheel Size18 in
Weight (Gas)787 lbs (794 lbs)
Electric Motor240V 5 HP Single Phase
Gas Engine11 HP Honda GXV 390
Width44 in
Length59 in
Height58 in

Manuals & sheets

Questions about the Mix 360?

Specifications from the manufacturer. Mix 360 at IMER USA

Overview

Vertical shaft mixers use the principles of concrete batch plant design, which allows for the paddles to rotate through the mix rather than lift and drop it as conventional mortar mixers do. The Mix 360 vertical shaft towable mixer easily mixes very low slump materials like dry pack mortar and refractory cement, as well as UHPC.

Standard equipment

  • Auto-Shutdown Safety Grate
  • Adjustable Leg Heights
  • Tow Bar
  • Torsion Bar Suspension

See it work
