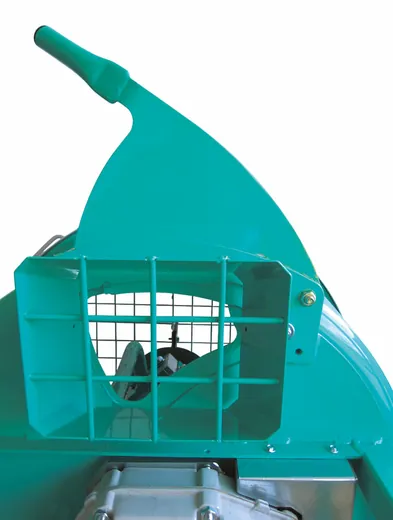

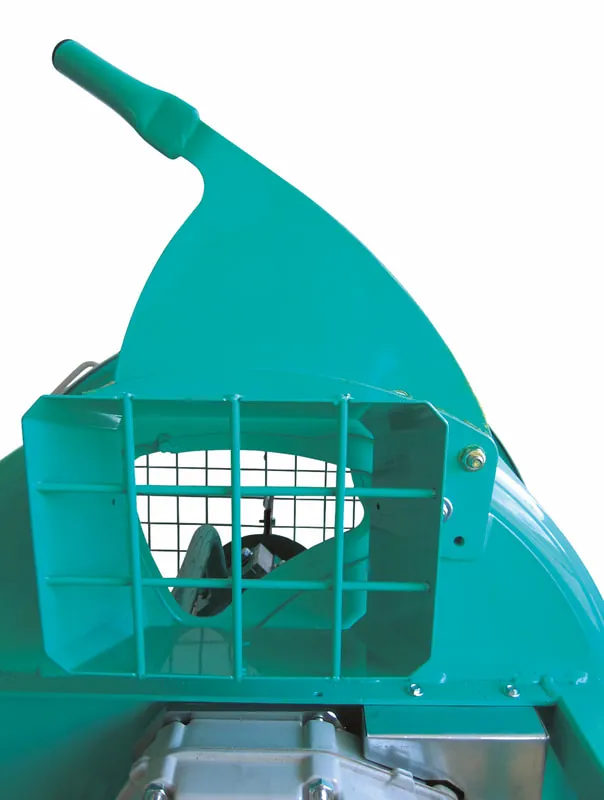

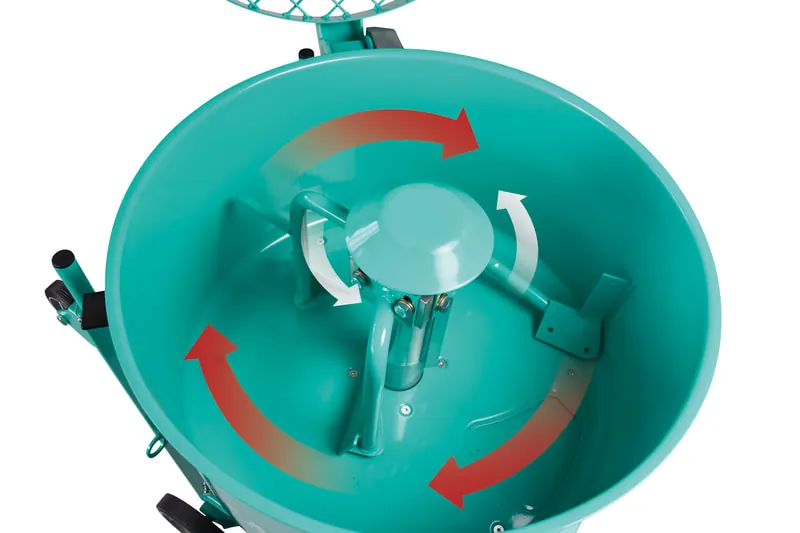

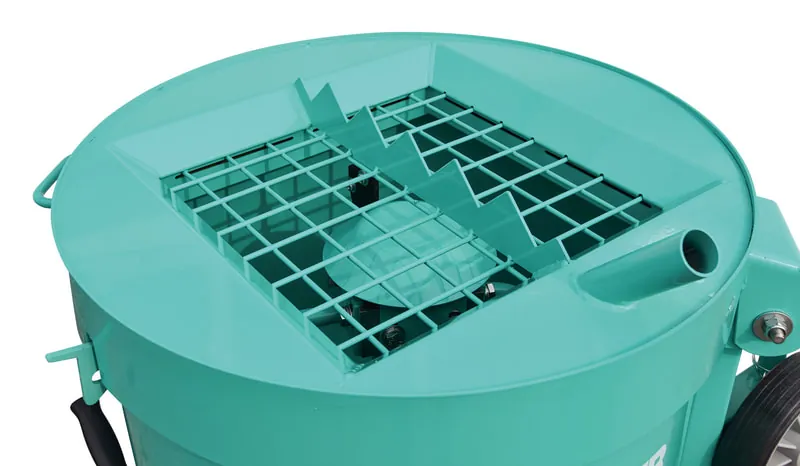

Mix 120 Vertical Shaft Mixer Mix 120 Vertical Shaft Mixer: Dust Suppression Grate Mix 120 Vertical Shaft Mixer: Rubber Paddle Kit Mix 120 Vertical Shaft Mixer: Rotation Mix 120 Vertical Shaft Mixer: Discharge Outlet

IMER · Vertical Shaft Mixers

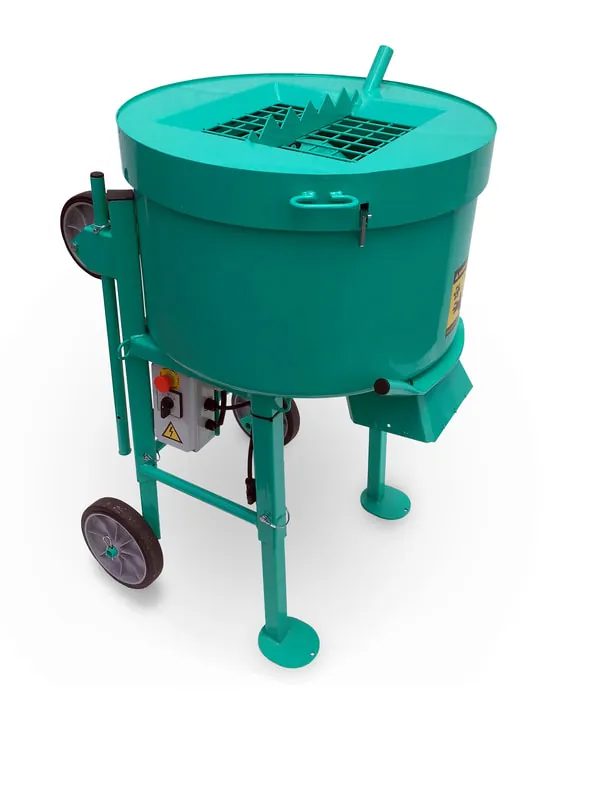

Mix 120

The Mix 120 Plus can make a wheelbarrow of mortar, stucco, grout, or dry pack cement every 3 minutes. Vertical shaft mixers deliver so much mixing torque that the Mix 120 Plus can out produce a two-bag towable mixer when making dry pack cement.

Buy

Freight and sales tax are worked out for your ship-to address.

Technical specifications

Model #1194302
Model # - Open Grate1194304
Drum Capacity4.25 cu ft
Drum Diameter30 in
Batch Output3 cu ft
Max. Aggregate Size3/8 in
Paddle Speed38 rpm
Motor Rating120V 2 HP
Current Draw15 amps
Noise70 dB(A)
Weight286 lbs
Width30 in
Length33 in
Height50 in

Manuals & sheets

Questions about the Mix 120?

Specifications from the manufacturer. Mix 120 at IMER USA

Overview

The Mix 120 Plus can make a wheelbarrow of mortar, stucco, grout, or dry pack cement every 3 minutes. Vertical shaft mixers deliver so much mixing torque that the Mix 120 Plus can out produce a two-bag towable mixer when making dry pack cement. Team the continuous mixer with an IMER spray and grout pump for semi-automatic production.

Standard equipment

  • 120V 2 HP Electric Motor w/ Reverse

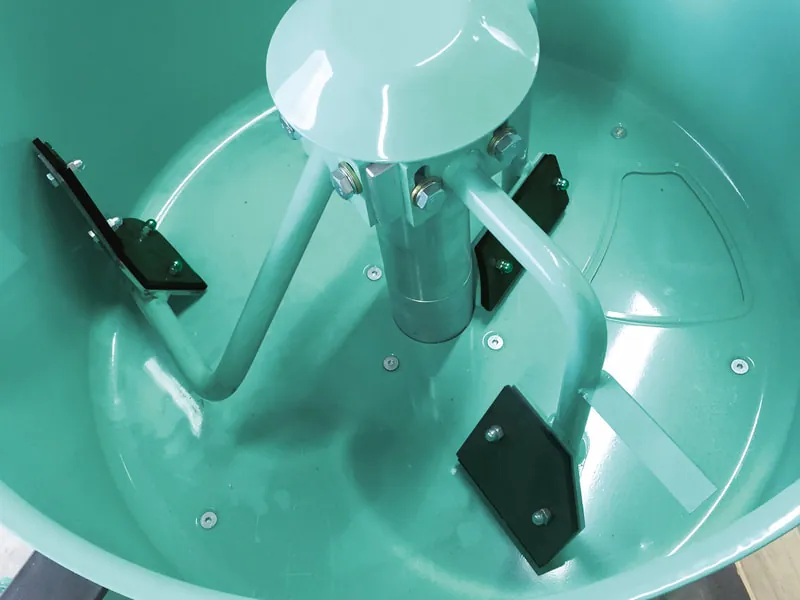

  • Rubber Paddle Kit
  • Transport Wheel Kit

See it work
