IM R 23 IM R 23

IMER · Articulated & Telescopic Lifts

IM R 23

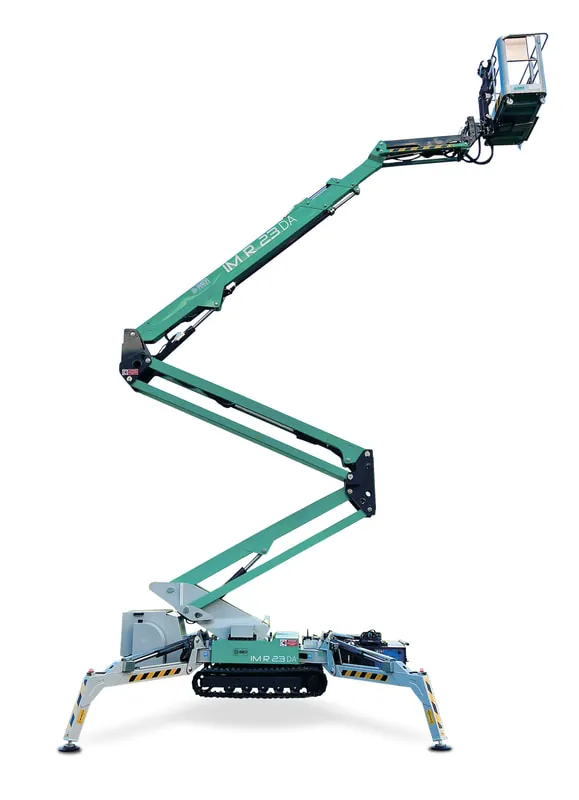

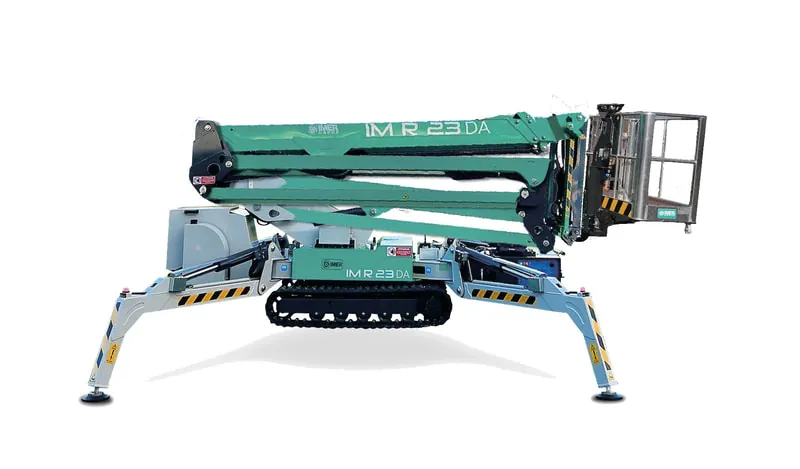

IMER IM-R 23 tracked lift. 75 ft working height, 68 ft platform. The tallest IMER tracked lift with articulated and telescopic boom.

Buy

Freight and sales tax are worked out for your ship-to address.

Manuals & sheets

Questions about the IM R 23?

Specifications from the manufacturer. IM R 23 at IMER USA

Overview

Platform Height 68 Ft, Side outreach (ft / lb) 35' / 507 -- 39' / 308 The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.

Standard equipment

  • Automatic outrigger leveling system
  • 355° rotation (not continuous)
  • Emergency hand pump
  • Cylinder holding valve
  • Hour meter
  • Load and tip detection sensor
  • Load cell
  • Hydraulic jib
  • Rubber tracks
  • 230V, 16 amp electric motor for indoor use
  • Air / Water outlet in the platform basket
  • 120V AC power to platform
  • Removable wired control box
  • Three travel speeds
  • Wired control
  • Remote battery charger
  • Removable basket with 1 pin detach
  • Overload sensor
  • 120V battery charger
  • Proportional controls with diagnostics
  • GX800 Honda Engine
  • Hydraulically adjustable track width
  • 12V emergency pump
  • 8" outrigger pads
  • Wireless radio remote control box
  • Hydraulic basket rotation — 124°

Optional equipment

  • Non-marking rubber tracks
  • Working light in the platform basket
  • 14" Oversized outrigger pads
  • Yanmar 3TNV70
  • IMERVIEW GPS Remote Monitor System
