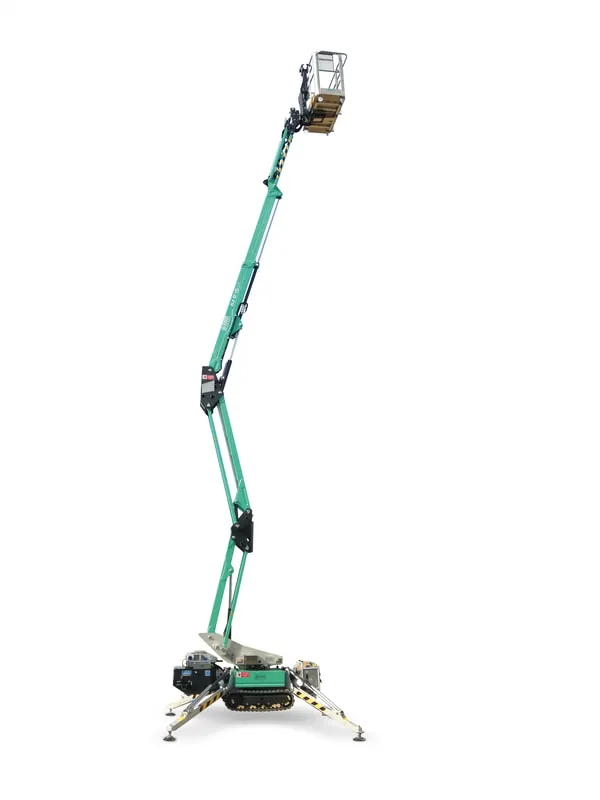

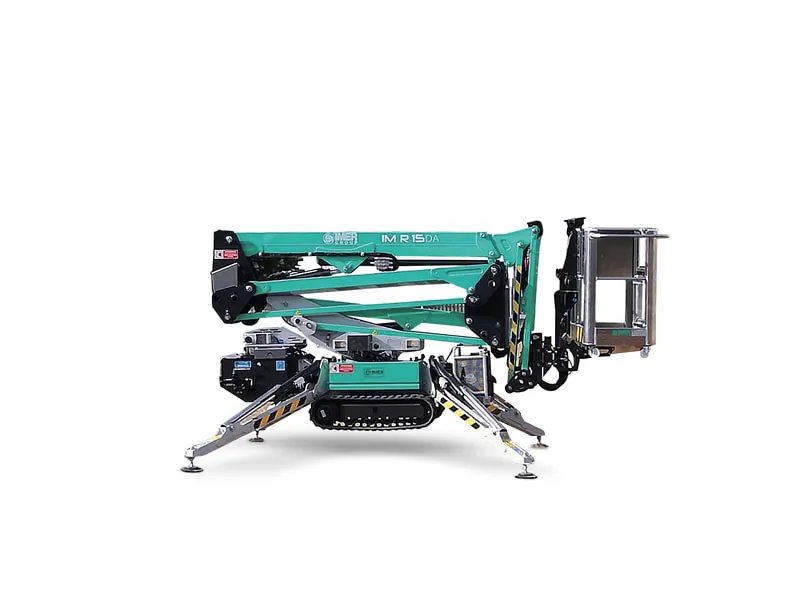

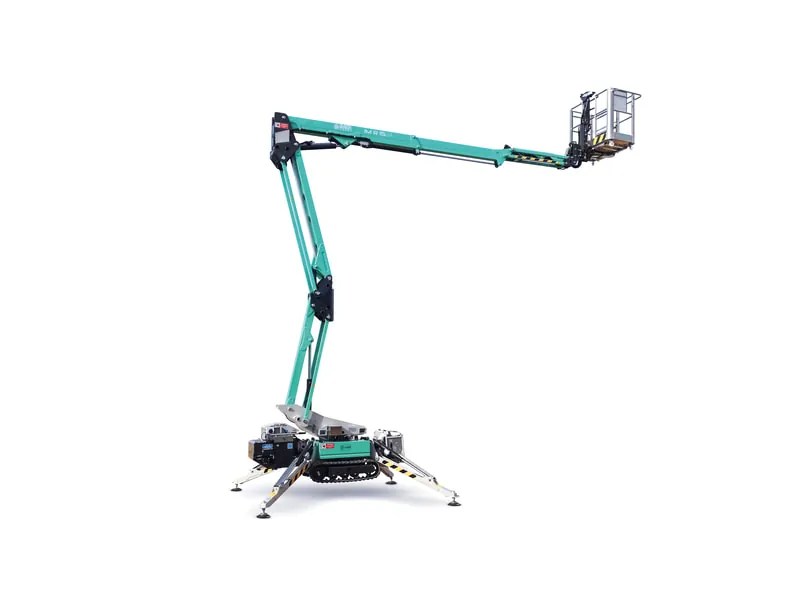

IM R 15

Overview

Platform Height 43 Ft, Side outreach (ft / lb) 23' / 506 The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.

Standard equipment

• Automatic outrigger leveling system
• 355° rotation (non-continuous)
• Hydraulic basket rotation — 124°
• 120V, 15 amp electric motor for indoor use
• Air / Water outlet in the platform basket
• 120V AC power to platform
• Removable wireless control box
• Tether for wired connectivity
• Max 510 lbs in basket (two person capacity)
• Three travel speeds
• Emergency hand pump
• Cylinder holding valve
• Hour meter
• Load and tip detection sensor
• Load cell
• Hydraulic jib
• Rubber tracks
• Remote battery charger
• Removable basket with 1 pin detach
• Overload sensor
• 120V battery charger
• Honda iGX390 engine
• Yanmar L100N diesel engine
• Hydraulically adjustable track width
• Proportional controls with diagnostics

Optional equipment

• Non-marking rubber tracks
• Working light in the platform basket
• 12V emergency pump
• 120V desktop remote charge
• Sliding, oversized outrigger shoes
• Oversized outrigger pads
• Double speed traction
• Aluminium basket (2' 11-1/2" x 2' 5")
• Aluminium basket (4' 7" x 2' 3-1/2")
• IMERVIEW GPS Remote Monitor System
