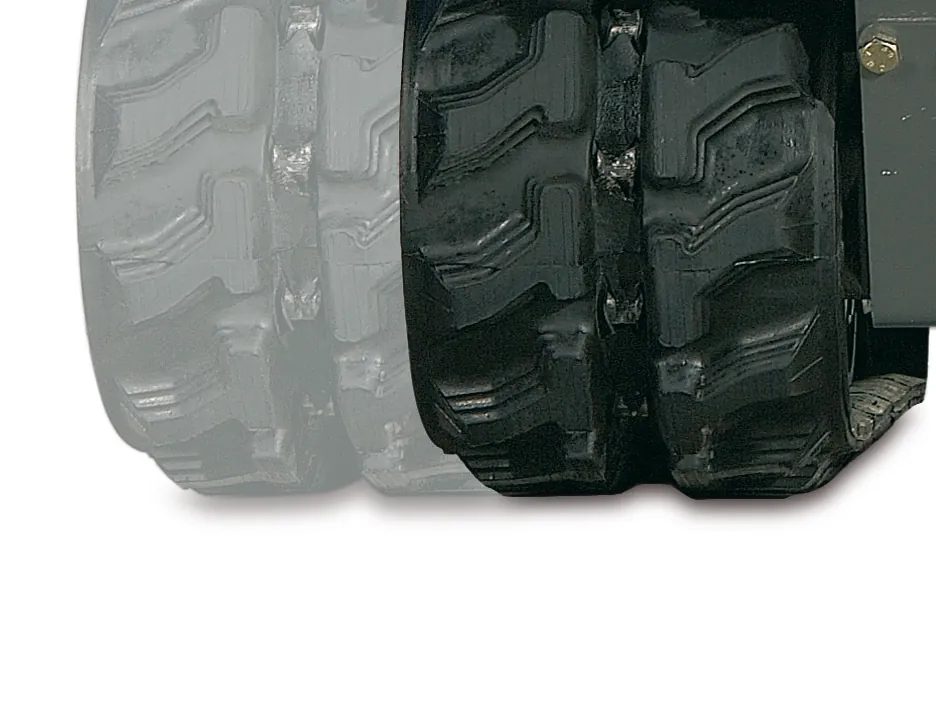

IM R 19 IM R 19 IM R 19 Tracks Expand for Added Stability When Moving

IMER · Articulated & Telescopic Lifts

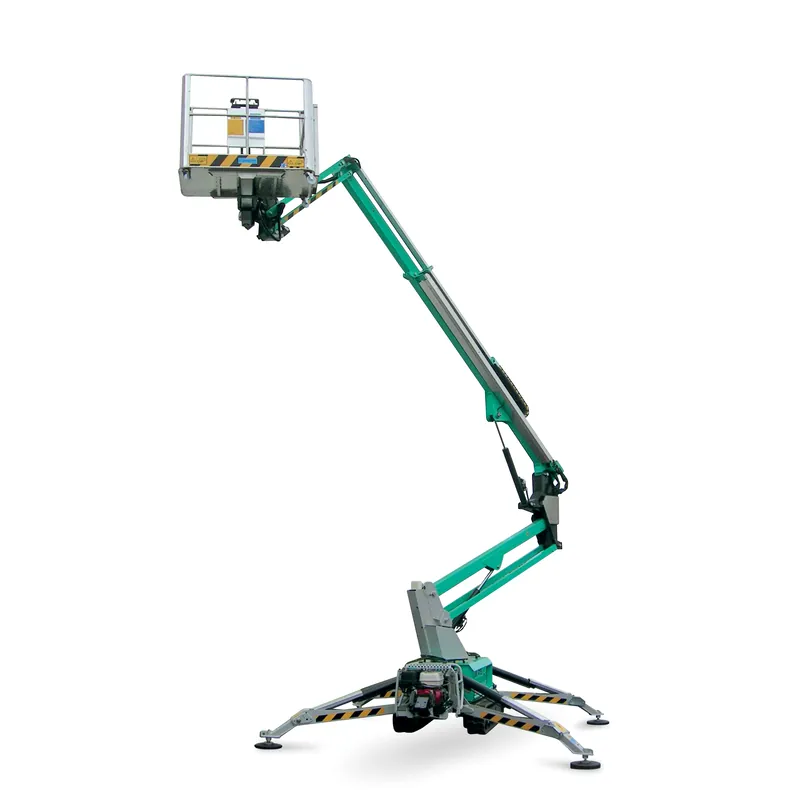

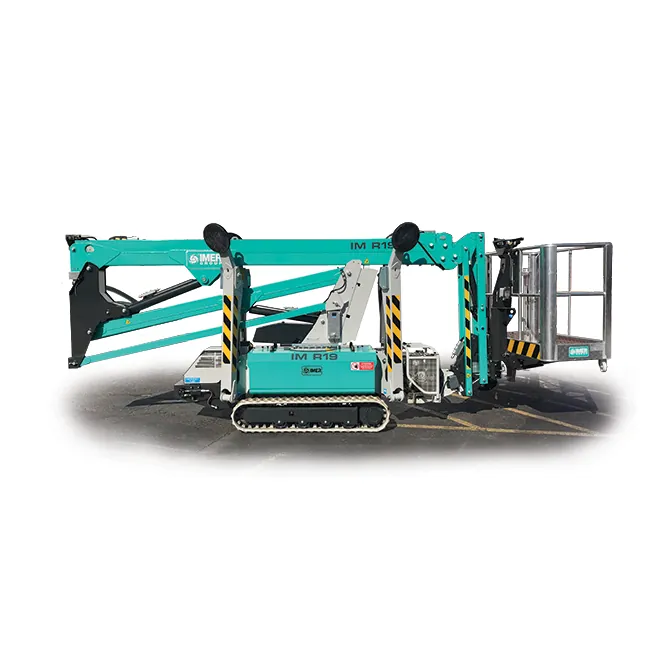

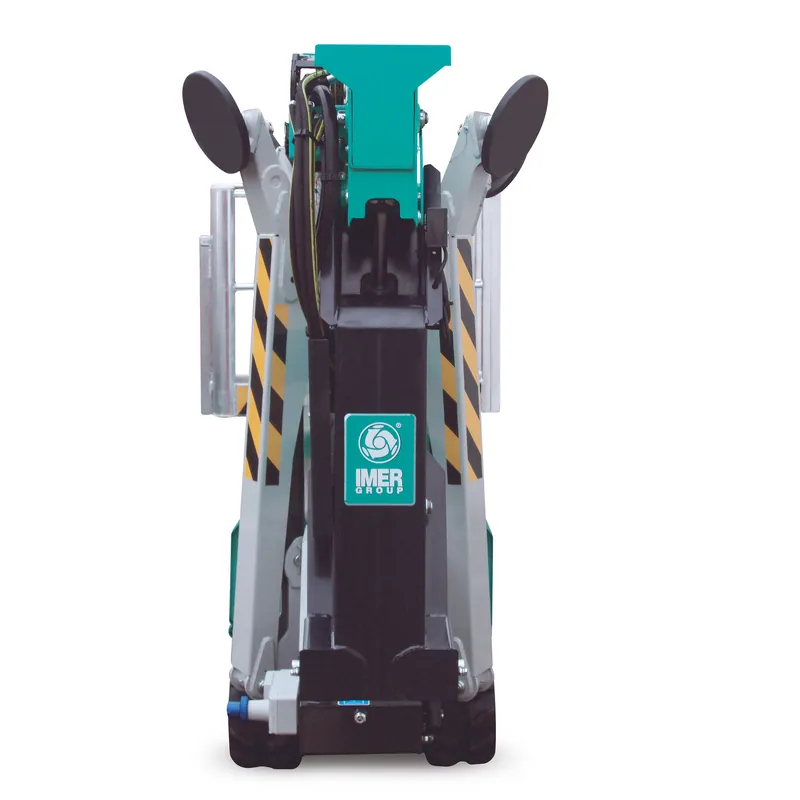

IM R 19

IMER IM-R 19 tracked lift. 62 ft working height, 56 ft platform. Articulated and telescopic boom with wireless remote and adjustable track width.

Buy

Freight and sales tax are worked out for your ship-to address.

Manuals & sheets

Questions about the IM R 19?

Specifications from the manufacturer. IM R 19 at IMER USA

Overview

Platform Height 56 Ft, Side outreach ft / lb 32’ / 176 -- 28’ / 310 -- 23’ / 510 The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.

Standard equipment

  • Automatic outrigger leveling system
  • 360° rotation (not continuous)
  • Emergency hand pump
  • Cylinder holding valve
  • Hour meter
  • Load and tip detection sensor
  • Load cell
  • Hydraulic jib
  • Rubber tracks
  • Electric motor for indoor use
  • Air / Water outlet in the platform basket
  • AC power to platform
  • Removable wired control box
  • Three travel speeds
  • Wired control
  • Remote battery charger
  • Removable basket with 1 pin detach
  • Overload sensor
  • 120V battery charger
  • Proportional controls with diagnostics
  • GX390 Honda Engine
  • Hydraulically adjustable track width
  • 12V emergency pump
  • Oversized 14" outrigger pads
  • Wireless radio remote control box

Optional equipment

  • Non-marking rubber tracks
  • Working light in the platform basket
