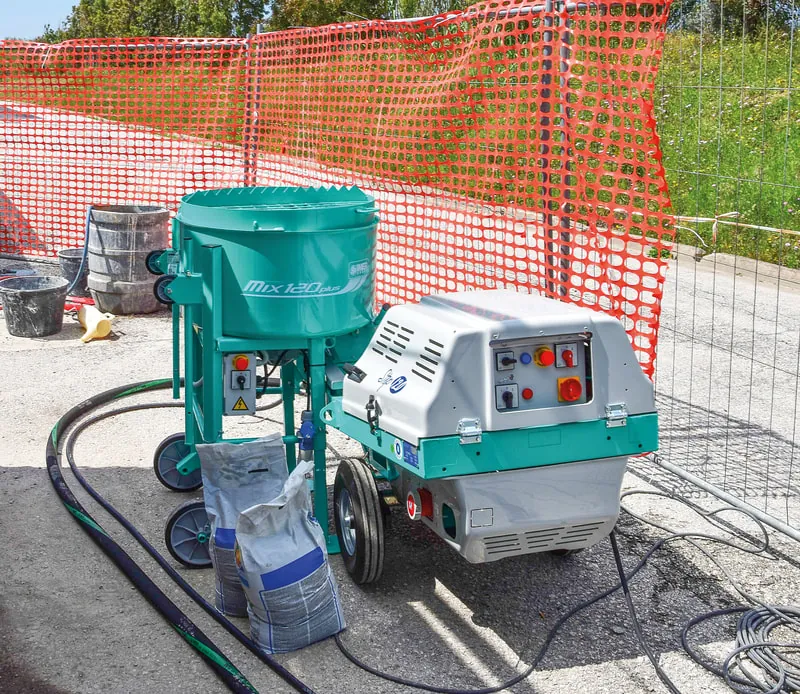

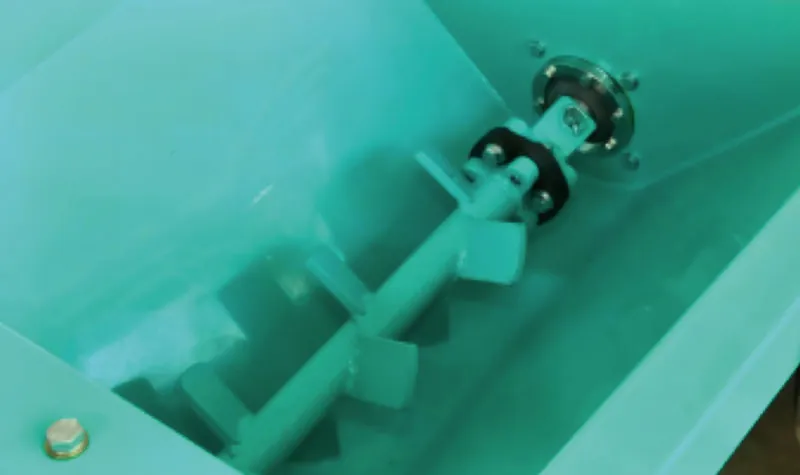

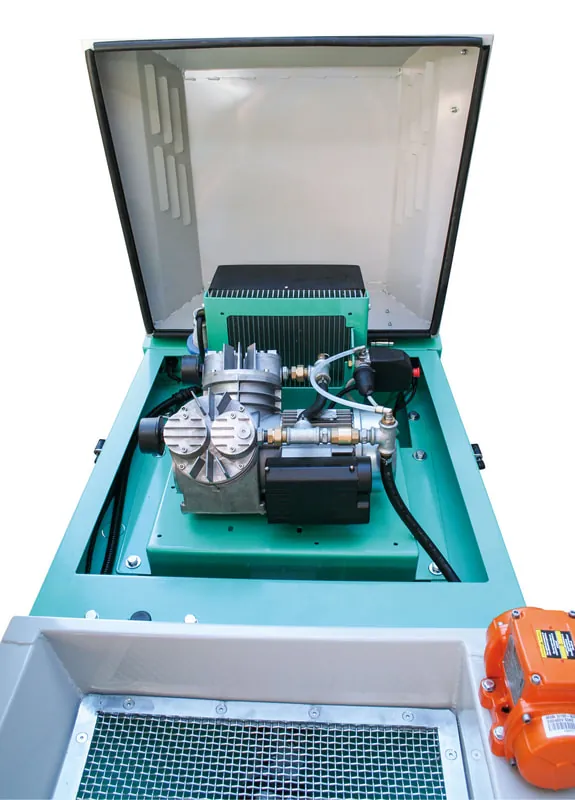

Step-Up 120 Rotor / Stator Pump Step-Up 120 Rotor / Stator Pump: Pump with Mix 120 Step-Up 120 Rotor / Stator Pump: Compressor Step-Up 120 Rotor / Stator Pump: Material Grate with Vibrator Step-Up 120 Rotor / Stator Pump: Drive Shaft Step-Up 120 Rotor / Stator Pump: Control Panel

IMER · Rotor / Stator Pumps

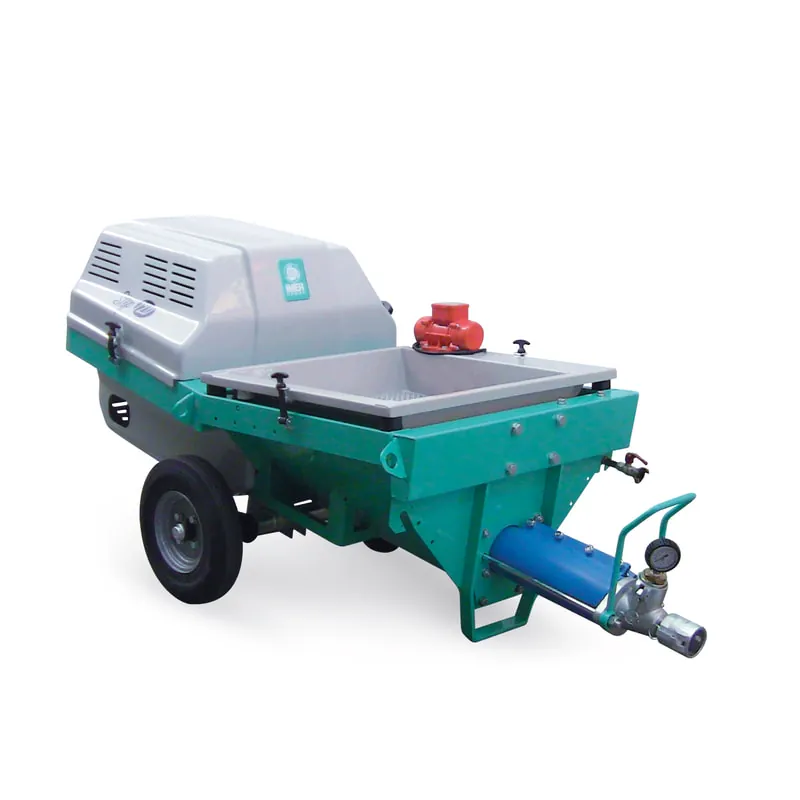

Step-Up 120

Pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofings and many other materials. The 3 phase power gives you more horsepower to push material further and with more flow.

Buy

Freight and sales tax are worked out for your ship-to address.

Technical specifications

Model #1106181
Motor Power Rate7.5 HP - 208 V 3Ø
Max Aggregate Size3/8 in
Hopper Capacity4.25 cu ft
Dimensions w/l/h33 in x 80 in x 38 in
Weight616 lbs

Manuals & sheets

Questions about the Step-Up 120?

Specifications from the manufacturer. Step-Up 120 at IMER USA

Overview

Step Up to IMER’s Step-Up 120 Series Spray and Grout Pumps

Pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofings and many other materials. The 3 phase power gives you more horsepower to push material further and with more flow. Pump grouts with up to 3/8” aggregates.

Standard equipment

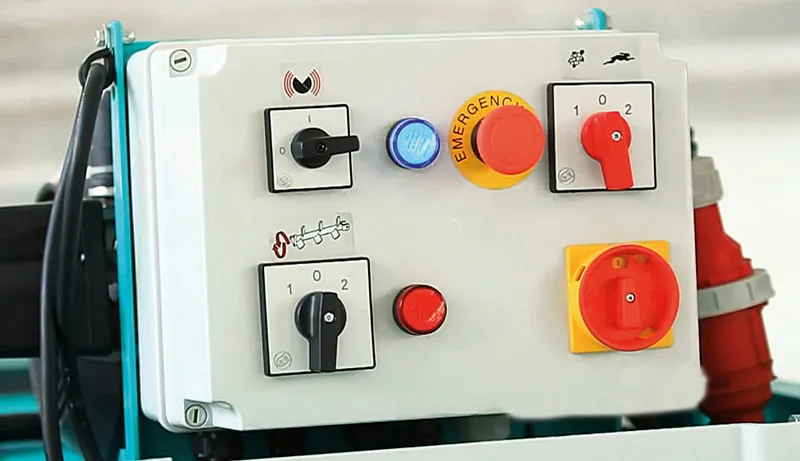

  • 2 speed control panel
  • 66' power cord
  • Remote control ready
  • 7.5 HP, 2 speed, 3 phase 100% duty cycle motor
  • IM25L rotor/stator
  • Tow kit

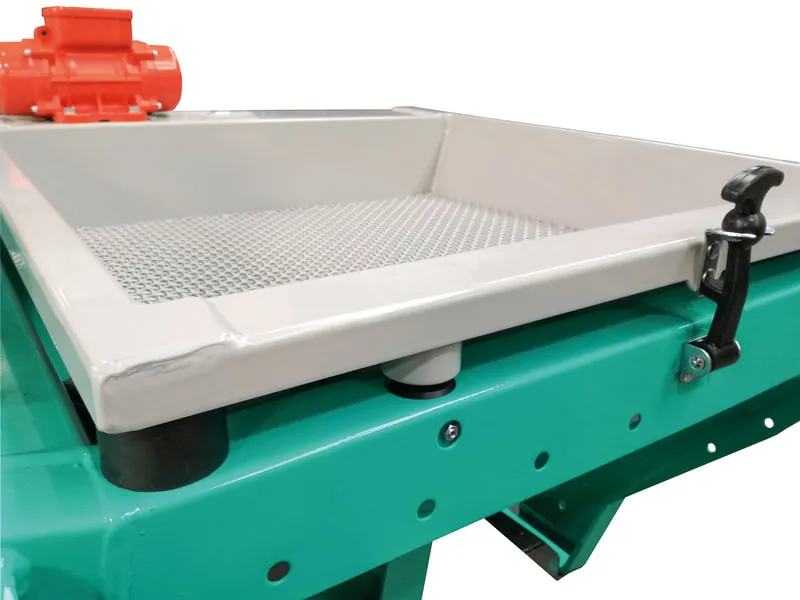

  • Grate for premixed materials
  • Accessory tool box

See it work

More Rotor / Stator Pumps
