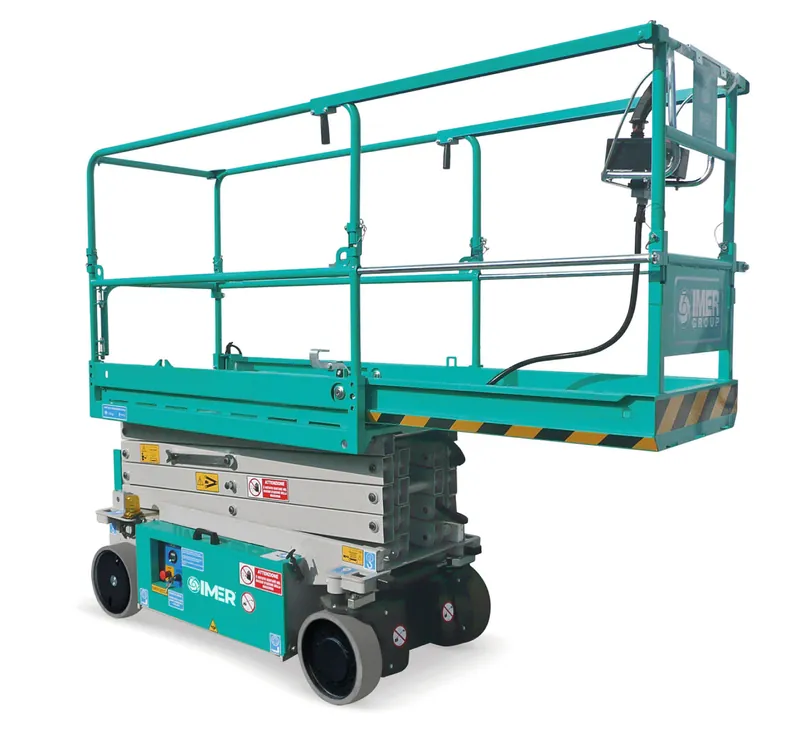

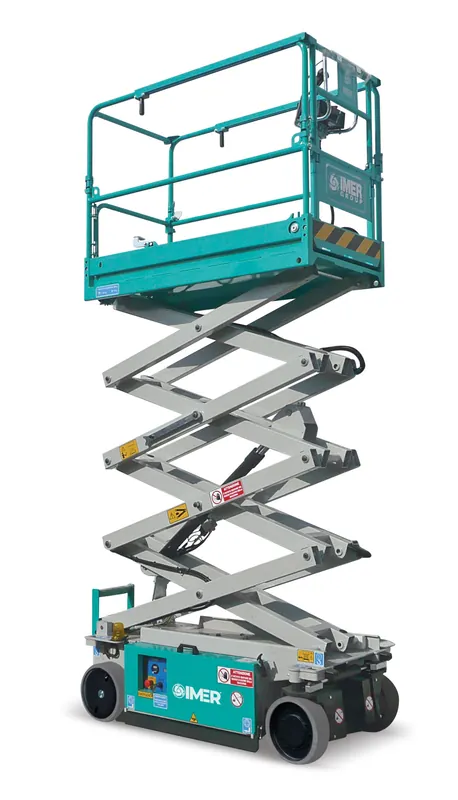

IM 3219 AC

Overview

Base Width of 32 Inches Platform Length (Extended) 8' - 8" Basket length 5'-5" | Basket Extension 39" Engineered to be compact and light-weight for easy clearance and maximum versatility. The reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles. Operators may drive in any position, including at full height, providing superior productivity.

Standard equipment

• Electric traction on the front wheels
• Negative electromagnetic parking brakes with electric disengagement
• 90° wheel steering
• Manual deck extension 39"
• Manual emergency lowering
• Non-return valve on lifting cylinders
• AGM batteries 24V 170Ah C5
• Battery charger with automatic cut-off
• All movement alarm, horn, hour meter
• Inclinometer with motion cut-out and alarm
• Mechanical release for emergency hauling
• Solid rubber non-marking tires
• Electric scissor protection
• Pot Hole protection
• Battery level control with low voltage protection
• Foldable guardrails
• Overload sensor
• CE - EN 280
• Prearranged cable for 220V outlet on platform
• Flashing beacon
• Control panel on the platform with capacitive buttons, proportional controls and diagnostics

Optional equipment

• Kit 220V outlet on platform (socket, plug and differential switch)
• Kit additional flashing beacon
• Compressed air line on platform
