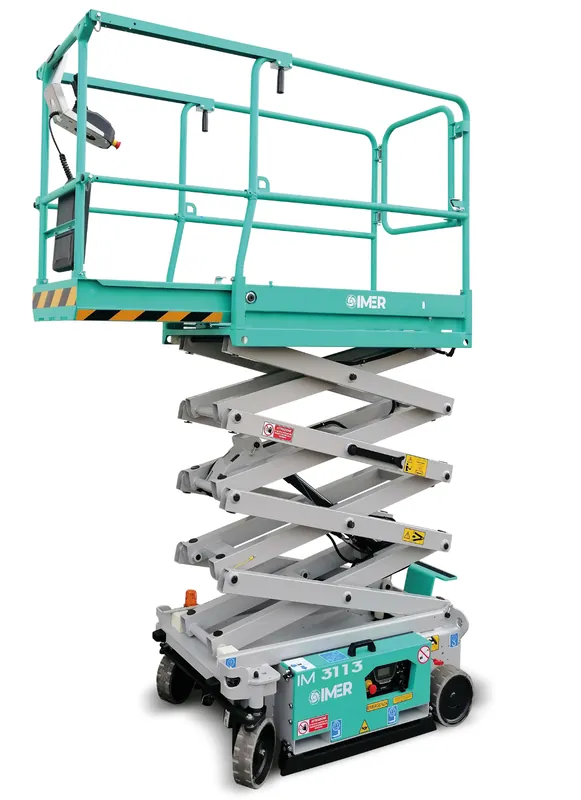

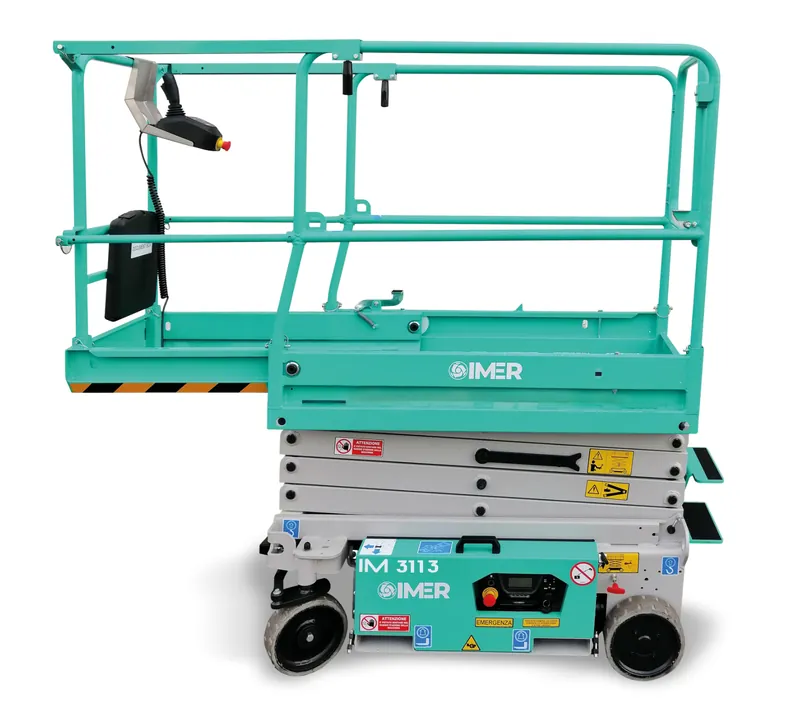

IM 3113

Overview

Base Width of 31 Inches 2' 2" Platform Extension Engineered to be compact and light-weight for easy clearance and maximum versatility. The reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles. Operators may drive in any position, including at full height, providing superior productivity.

Standard equipment

• Rear wheel electric traction
• Negative electromagnetic parking brakes with electric disengagement
• Front wheels electric steering
• Manual deck extension 66 cm
• Manual emergency lowering
• Non-return valve on lifting cylinders
• AGM batteries 12V 85Ah C5
• Battery charger with automatic cut-off
• All movement alarm, horn, hour meter
• Inclinometer with motion cut-out and alarm
• Mechanical release for emergency hauling
• Solid rubber non-marking tires
• Antishearing electric protection
• Pot Hole protection
• Battery level control with low voltage protection
• Foldable guardrails
• Overload sensor
• Flashing beacon
• Control panel on the platform with capacitive buttons, proportional controls and diagnostics

Optional equipment

• Kit 220V outlet on platform
• Kit for compressed air
• Kit additional flashing beacon
• Kit IMERVIEW
