IMER · Multi-Mixers
Wheelman
The Wheelman is the highest performing, most reliable, affordable small portable mixer available today. It is easy to transport and assemble, and is built to tackle all types of projects and materials, such as mortar, stucco, grout, concrete.
Freight and sales tax are worked out for your ship-to address.
Technical specifications
| Model # | n/a (1105422) |
|---|---|
| Model # Poly (Electric) | 1105426 (1105421) |
| Drum Capacity | 5 cu ft |
| Batch Output | 2.5 cu ft |
| Gas Motor (Electric) | Honda 3 hp ( 1/2 hp 120 V / 6amp) |
| Drum Diameter | 24 in |
| Discharge Outlet Height | 8 in (21 in w / stand) |
| Wheel Size | 14 in pneumatic tires |
| Weight (electric) | 115 lbs (101 lbs) |
| Width (Boxed) | 26 in (26 in) |
| Length (Boxed) | 46 in (29 in) |
| Height (Boxed) | 36 in (27.5 in) |
Manuals & sheets
Specifications from the manufacturer. Wheelman at IMER USA
Overview

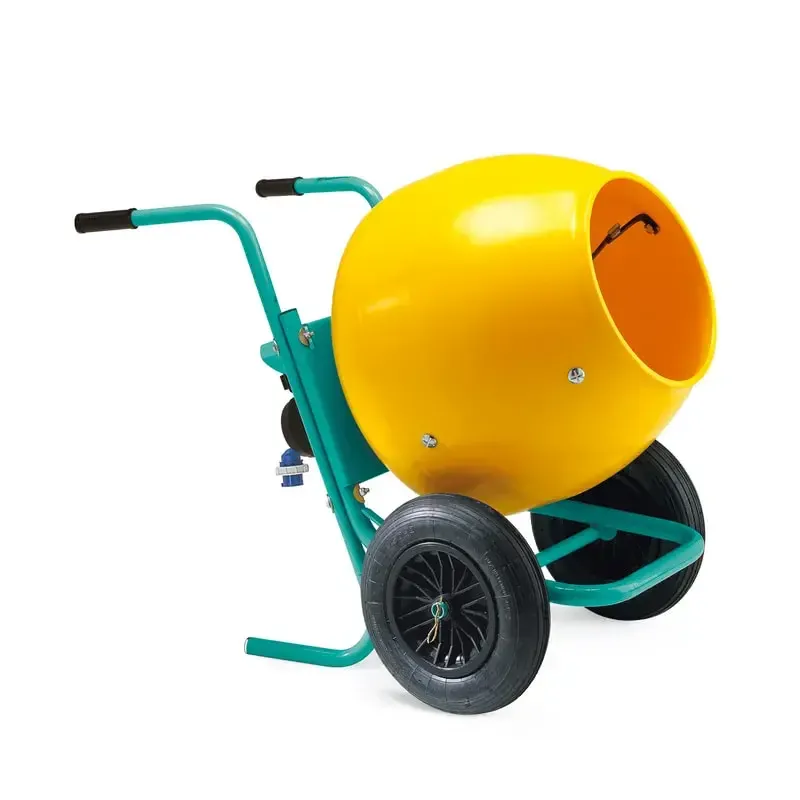

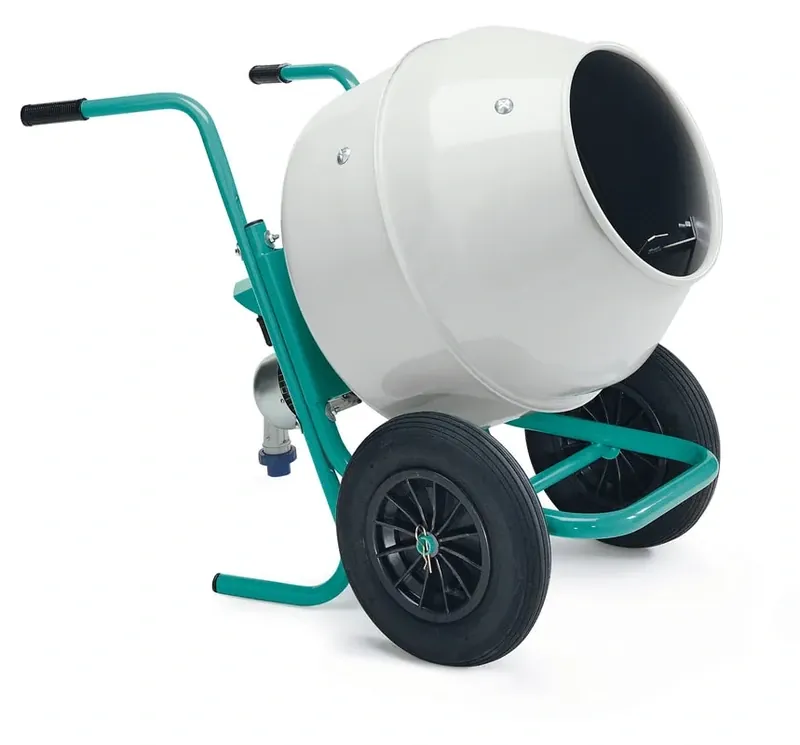

The Wheelman II Wheelbarrow Style Mixer is built to tackle all types of projects and materials, such as mortar, stucco, grout, concrete, and is the only mixer with a removable drum that can be loaded by one person into a small vehicle. Use it to mix, transport, and then dump right to your work area. The Polyethylene drum is spun-injected, a plastic forming process that delivers a perfectly round and extra-durable drum. The optional 360° Swivel Stand is an excellent add-on for an easy to dump solution. Available with a Honda gas engine or an industrial-grade electric 110V motor. Available with Poly Drum and Steel Drum. Model # 1105421 120V 0.5 HP Poly Drum
Standard equipment

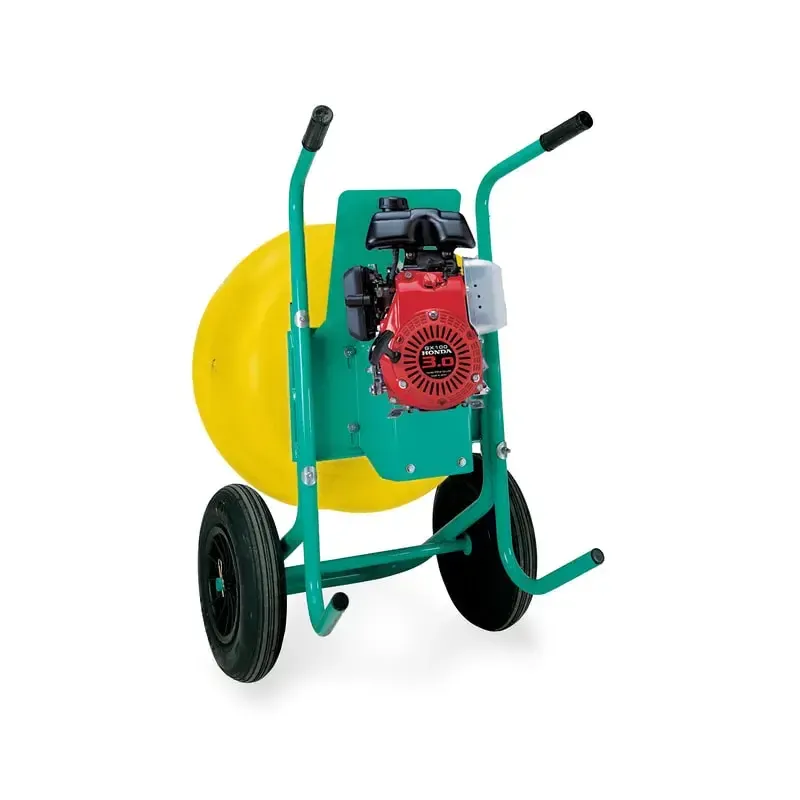

- 1/2 HP 110V industrial grade electric motor or 3 HP Honda with direct gear drive
- Wheelbarrow pneumatic wheels
- 5 cu ft poly drum with 3 cu ft output
- Aggressive paddles to mix fast and complete
Optional equipment

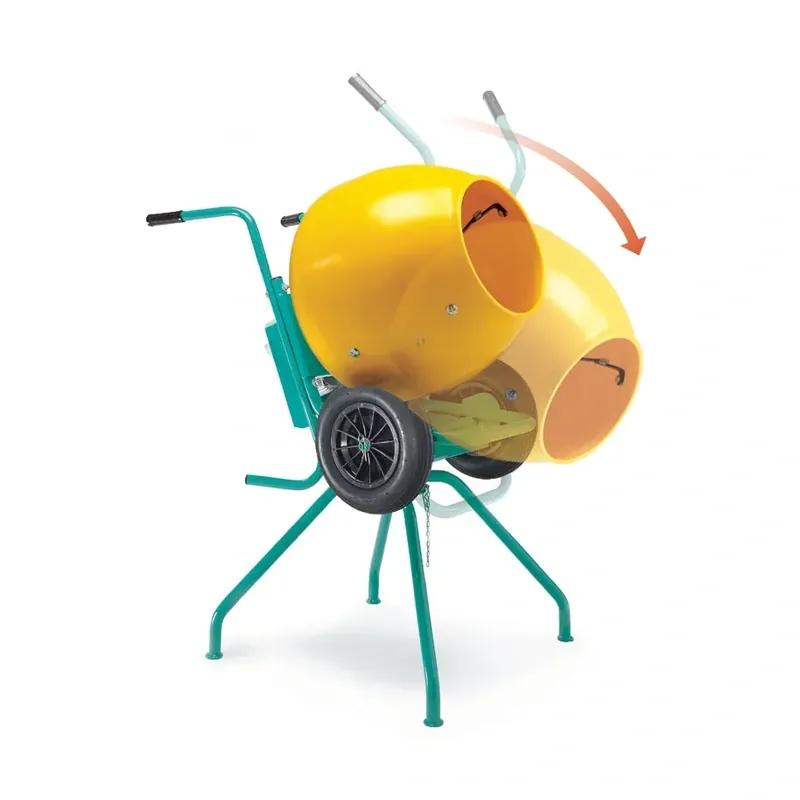

- 360° Swivel Stand — easy to dump and swivels a full 360°
