IMER · Floor Saws

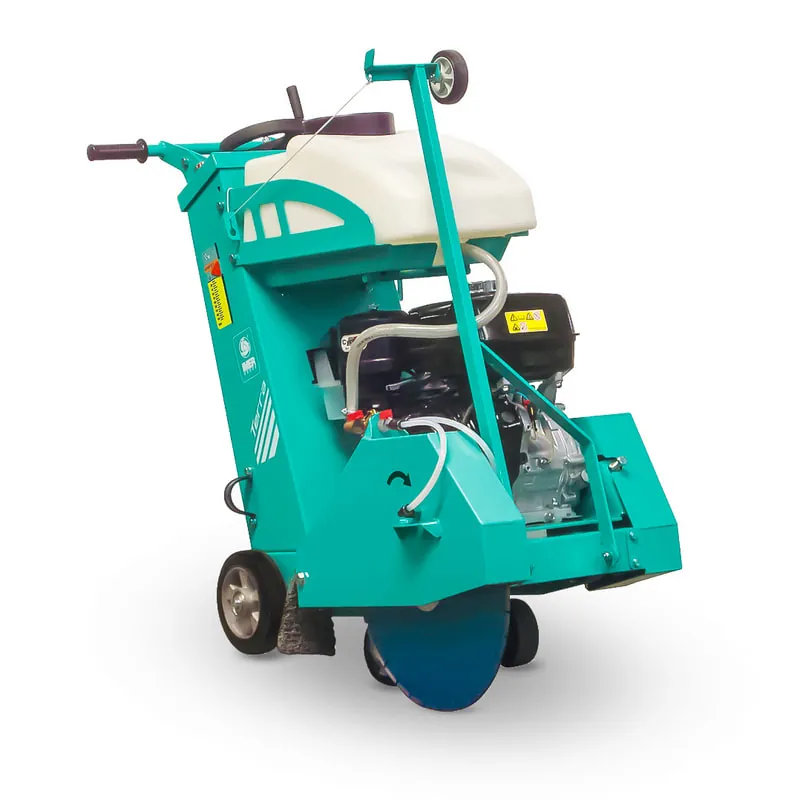

Terra Cut 500

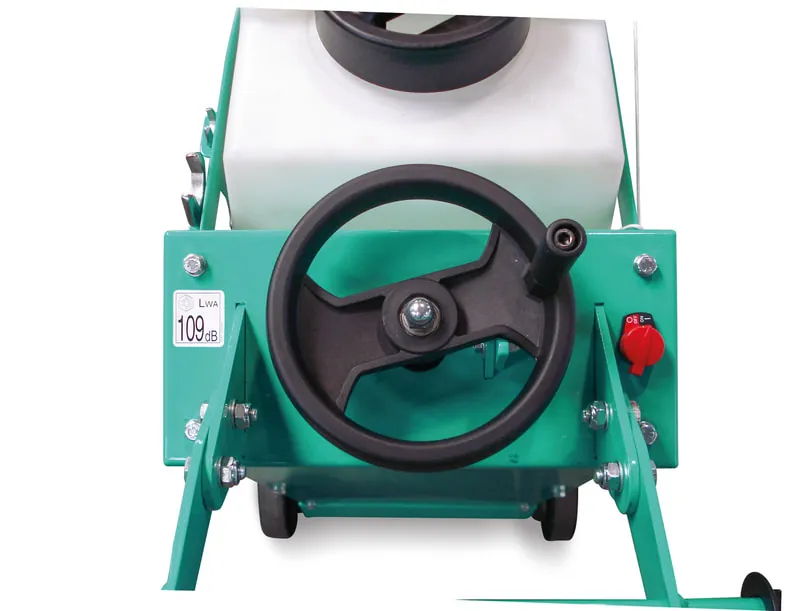

Designed for cutting large concrete and asphalt surfaces, featuring a patented fast system for handwheel locking/ unlocking to maintain cutting depth, double vibration damping system for enhanced operator comfort, patented automatic parking brake linked…
Freight and sales tax are worked out for your ship-to address.
Technical specifications
| Model # | 1193732 |
|---|---|
| Engine Power | 13 HP |
| Max Engine Speed | 3,850 rpm |
| Starting | Manual |
| Forward Drive | Manual |
| Blade / Bore Diameter | 20 in / 1 in |
| Max Cut Depth | 7.5 in |
| Weight | 287 lbs |
| Dimensions w/l/h | 24 in x 54 in x 48.5 in |
Manuals & sheets
Questions about the Terra Cut 500?
Specifications from the manufacturer. Terra Cut 500 at IMER USA
Overview
Designed for cutting large concrete and asphalt surfaces, featuring a patented fast system for handwheel locking/ unlocking to maintain cutting depth, double vibration damping system for enhanced operator comfort, patented automatic parking brake linked to blade height, polyethylene water tank with quick joint system, and welded steel chassis for structural rigidity ensuring cutting precision in all conditions.
