IMER · Continuous Mixers
Spin Max
IMER Spin Max — mixes 214 bags/hr of preblended mortar, stucco, grout & underlayment. 3 cu yd/hr, 1.75 hp, 215 lbs.
Freight and sales tax are worked out for your ship-to address.
Technical specifications
| Model # | 1106200 |
|---|---|
| Hopper Capacity | 6 - 50 lb. bags (300 lbs.) |
| Mixing Performance | 3 cu yds / hr |
| Mixer / Paddle Speed | 280 rpm |
| Motor Power Rate | 120V 1.75 HP |
| Dust Suppression Grate | Yes |
| Weight | 215 lbs |
| Dimensions w/l/h | 27.5 in x 54 in x 46 in |
Manuals & sheets
Specifications from the manufacturer. Spin Max at IMER USA
Overview
The IMER Spin Max (Model #1106200) is a professional-grade continuous mixer engineered for contractors handling preblended plasters, mortars, stuccos, grouts, self-leveling underlayments, floor screeds, fireproofing, and concrete. Delivering 3 cu yd/hr at 280 rpm with a 1.75 hp motor, the Spin Max processes up to 214 bags per hour. Its patented parallel axis gearbox and patented iDust grate extend service life, while the 3-position removable chute, onboard cleanout hose, and adjustable water flow meter keep crews moving between loads. At 215 lbs with flat-free wheels and a wheelbarrow-style handle, the Spin Max maneuvers easily across any job site. Hopper capacity: 6 x 50 lb. bags (285 lbs). Dimensions: 27.5 in x 54 in x 46 in. Call 800-275-5463 to order.
Standard equipment
- 120V 1.75 HP Electric Motor

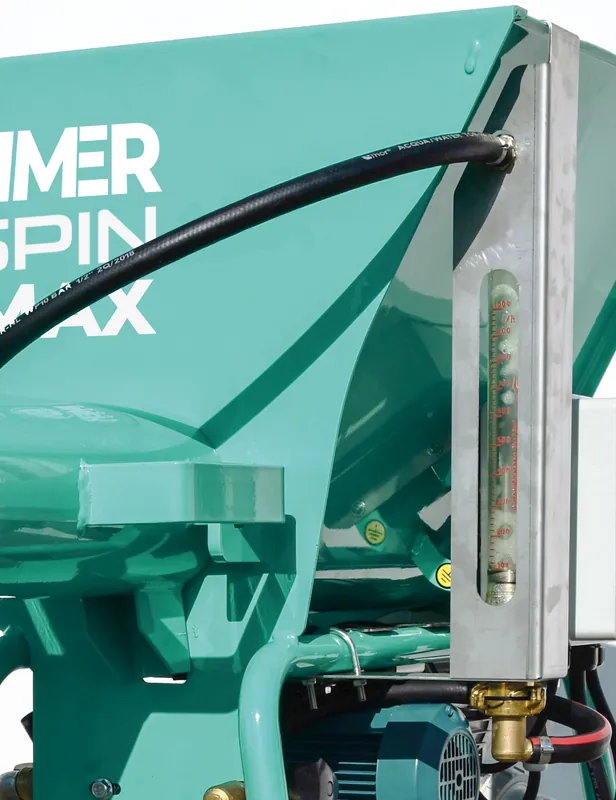

- Adjustable Water Flow Meter (measured in l/hr)
- "iDust" Dust Suppression Grate
- Aggressive paddles to mix fast and complete
- 3-position discharge chute
- Flat-free tires
