IMER · Masonry Saws

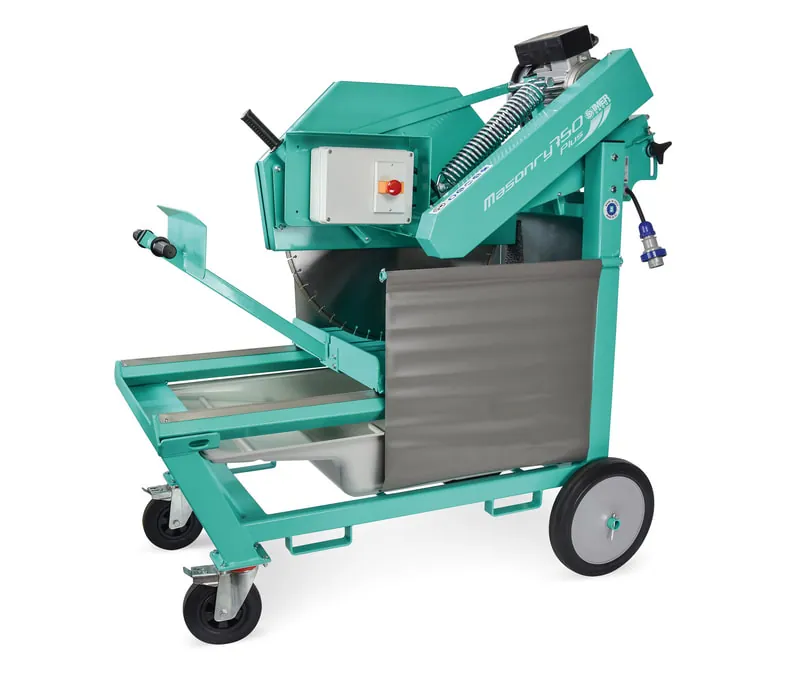

Masonry 750
The Masonry 750 Plus allows operators to cut 8” and 10” blocks in a single pass – without the added hassle and effort of a foot pedal. The powerful 7.5 hp electric motor combined with the 30” blade delivers 12” of cutting depth.
Freight and sales tax are worked out for your ship-to address.
Technical specifications
| Model # | 1188863 |
|---|---|
| Model # 3Ø | 1188864 |
| Blade Diameter | 30 in |
| Blade Shaft Diameter | 1 in |
| Max. Cut Depth (w/ plunge) | 18 in (27 in) |
| Motor Rating 1 Ø | 5.5 HP 220 V |
| Motor Rating 3 Ø | 7.5 HP 208V |
| Blade Speed | 1,700 rpm |
| Weight | 440 lbs |
| Water Pan Capacity | 9 gal |
| Water Pump Flow | 3 gpm |
| Dimensions l/w/h | 61 in x 63 in x 33.5 in |
Manuals & sheets
Questions about the Masonry 750?
Specifications from the manufacturer. Masonry 750 at IMER USA
Overview
Masonry 750 Plus allows operators to cut 8" and 10" blocks in a single pass – without the added hassle and effort of a foot pedal. The powerful 7.5 hp electric motor combined with the 30" blade delivers 12" of cutting depth. Cut through blocks, pavers, and pre-cast concrete products with ease. The frame and cutting tray are hand fabricated using heavy-duty steel, and the ergonomic design ensures operator comfort throughout the workday.
