IMER · Overhead Rail Saws

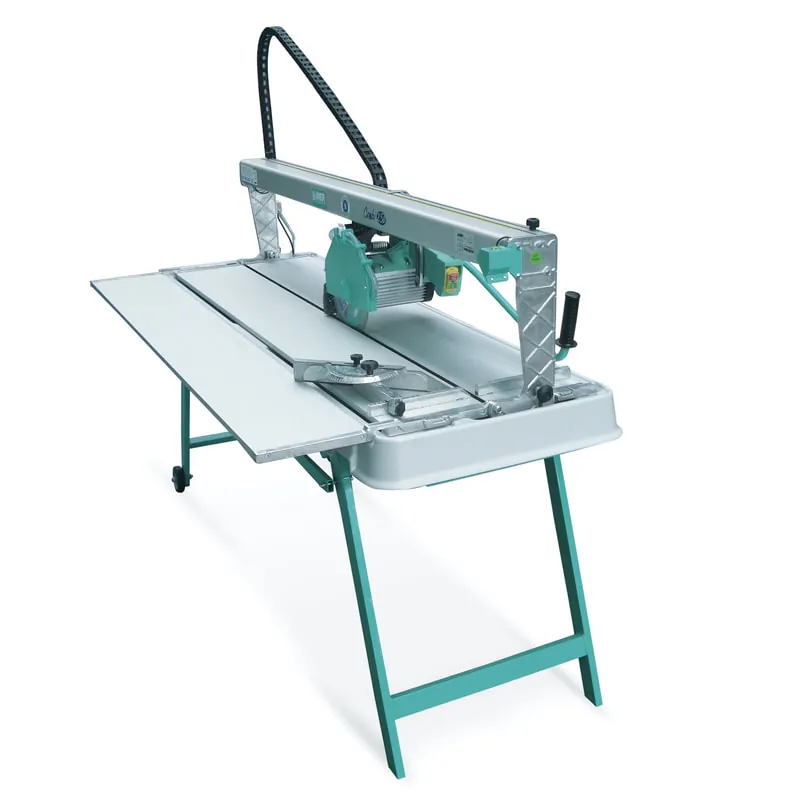

Combicut 250/1500
The Combicut 250/1500 is ideal for those jobs with tile sizes up to 60” overall. Its light weight makes this easy to transport but big on features. Comes with side table, protractor, folding stand and general purpose blade.
Freight and sales tax are worked out for your ship-to address.
Technical specifications
| Model # | 1188180 |
|---|---|
| Blade Diameter | 10 in |
| Blade Shaft Diameter | 5/8 in |
| Max. Cut Length (w/ plunge) | 57 in (60 in) |
| Max. Cutting Depth | 3.75 in |
| Motor Rating | 1.75 HP 120 V |
| Blade Speed | 2,800 rpm |
| Weight (Boxed) | 125 lbs (150 lbs) |
| Water Pan Capacity | 13 gal |
| Water Pump Flow | 3 gpm |
| Dimension l/h/w | 76 in x 24 in x 25 in |
Manuals & sheets
Questions about the Combicut 250/1500?
Specifications from the manufacturer. Combicut 250/1500 at IMER USA
Overview
The Combicut 250/1500 is ideal for those jobs with tile sizes up to 60” overall. Its light weight makes this easy to transport but big on features. Comes with side table, protractor, folding stand and general purpose blade. Use for cutting accurate miters. Comes completely assembled out of the box, only the stand requires 2 bolts.
Standard equipment
- 10" continuous rim porcelain blade included
- Integrated stand with wheel kit
- Included side table for large format tiles

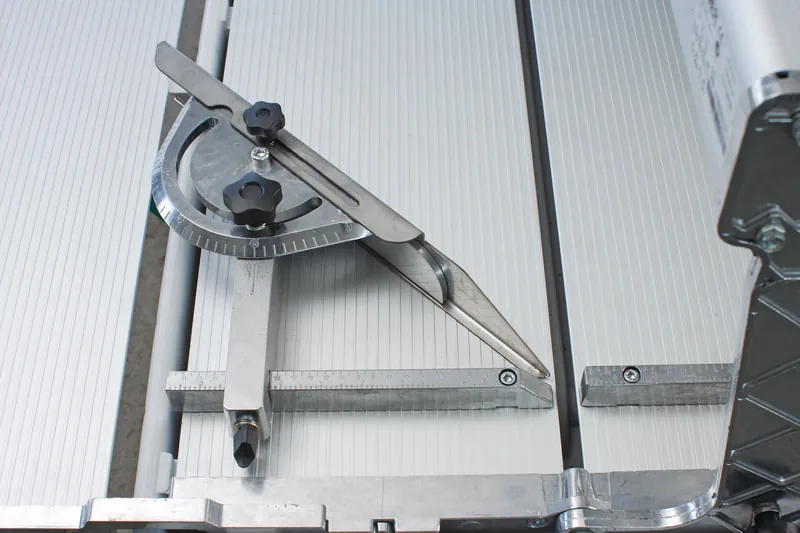

- Included protractor with 180°
- Complete with high flow water pump
- Water valve to control water mist
- Equipped with a laser guide to make cuts quickly and accurately
- High impact removable poly water pan with baffle
See it work
