IMER · Piston Pumps
Booster 20
IMER Booster 20 diesel piston pump. 20 cu yd/hr output, 1,000 psi, 1-inch max aggregate. Compact towable design for concrete, shotcrete, and high-strength grouts.
Buy
Freight and sales tax are worked out for your ship-to address.
Technical specifications
| Model # | 1106427 |
|---|---|
| Engine | 3 Cylinder Diesel |
| Engine Power | 28 HP |
| Pumping System | 2- Cylinder w/ Hydraulic Control |
| Max Aggregate | 1 in |
| Flow Rate | 3 - 20 cu yd / hr |
| Pumping Pressure | 1,000 psi |
| Outlet | 4 in HD |
| Hopper Capacity | 7 cu ft |
| Loading Height | 42.5 in |
| Dimensions w/l/h | 58 in x 161 in x 60 in |
| Weight | 3,100 lbs |
Manuals & sheets
Questions about the Booster 20?
Specifications from the manufacturer. Booster 20 at IMER USA
Overview
Although it has high-performance output, the compact design of the Booster 20 allows it to function on job sites with limited space - where no other pumps of its capability could fit. This pump is designed and built to provide up to 20 cubic yards per hour of concrete, shotcrete, and high strength grouts.
Standard equipment

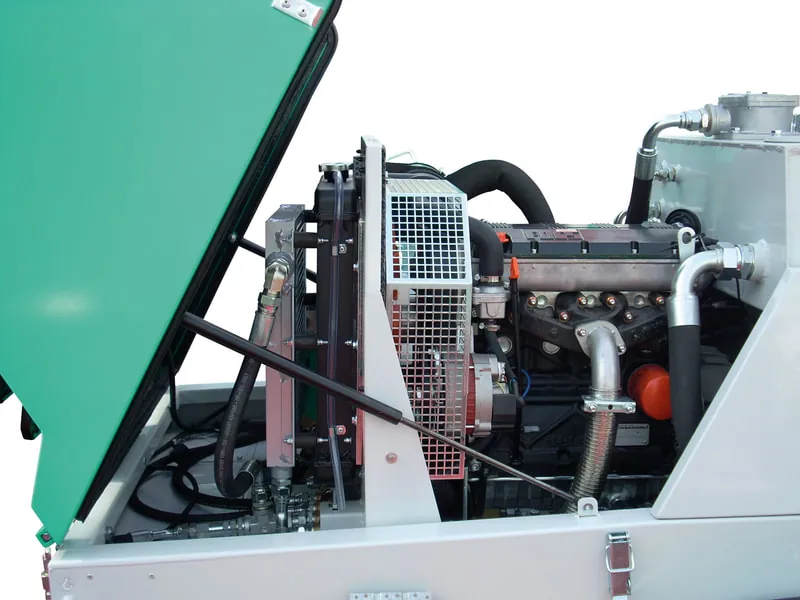

- 3-cylinder liquid cooled, 28 HP, diesel engine
- Automatic greasing system

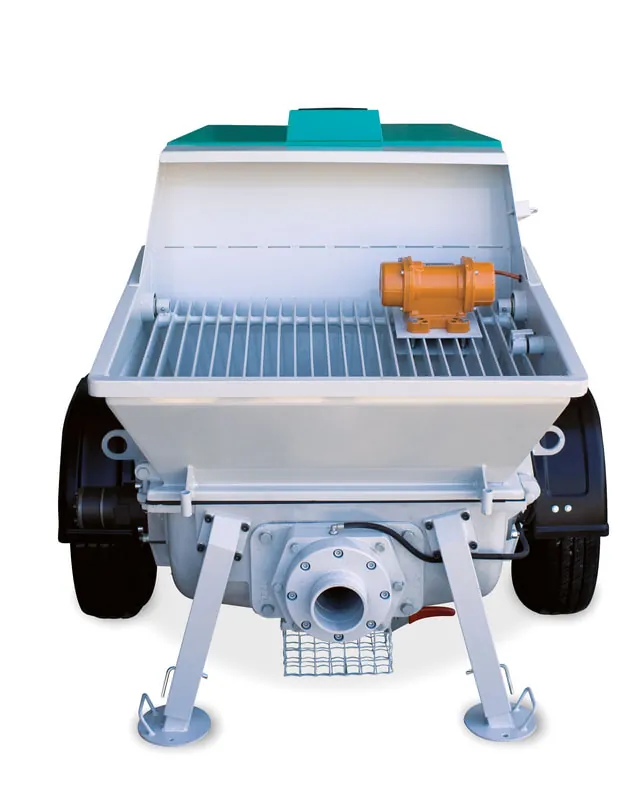

- Concrete hopper with agitator
- Vibrating grid, 12V
- Hydraulic system with reverse
- Pumping unit with S-valve with automatic compensation of clearance and wear
- 4" Heavy Duty delivery manifold

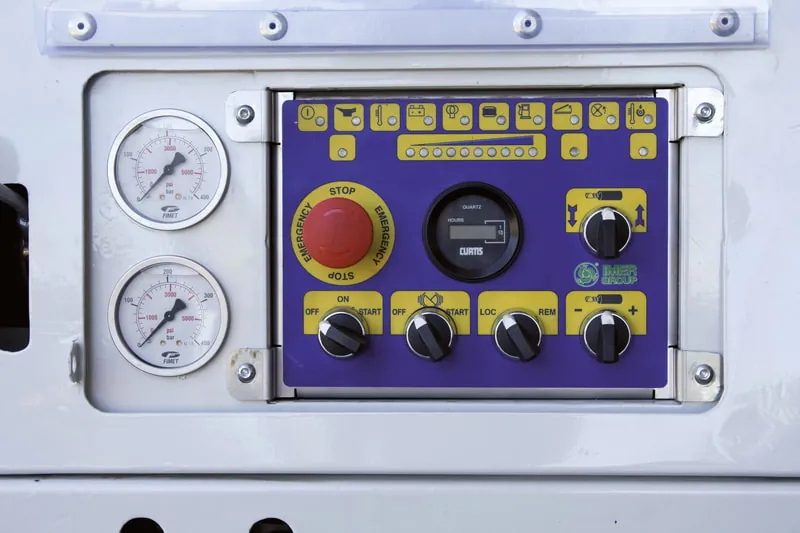

- Control panel with electromechanical controls
- Piston head installation and extraction tool kit
- Complete w/ heavy duty highway tow package
- Accessory box with grease pump
- Centralized grease ports
- 4" Cleaning balls
Optional equipment
- Hydraulic power washer — Part # 1107208
- 5 Function radio remote — Part # 1107001
- 4 function remote control — Part # 1107086
- Rubber hopper extension kit (13 cu ft) — Part # 1107196
- Steel hopper extension kit (17 cu ft) — Part # 1107197
